Localization

Learn how to localize an extension's user-facing text.

For an editing extension to be accepted into the Apps Directory, all of the strings for its controls must be stored in a JSON file and uploaded to the Developer Portal via the Translations field.

This allows the Canva team to:

  • Review the strings as part of the submission process.

  • Translate strings into other languages.

This topic describes how this JSON file should be structured and how to access the strings from within the extension.

Structure of a localized labels file

This is the structure of the JSON file that needs to be uploaded to the Developer Portal:

{
"en": [
{
"key": "greeting",
"value": "I hope you're having a lovely day.",
"translatorNote": "Label for notification when user opens the app."
}
]
}

Here, we can see that there's a top-level property named "en". This is the language code for English. At the moment, all developers must provide us with the English versions of their labels.

The "en" property contains an array of objects, with each object representing a string:

{
"key": "greeting",
"value": "I hope you're having a lovely day.",
"translatorNote": "A friendly message for when the user opens the app."
}

Each object must have the following properties:

Name

Type

Description

key

string

A unique ID for the string

value

string

The content of the string.

translatorNote

string

A note that provides context to assist with translating the string.

Adding localized labels to an editing extension

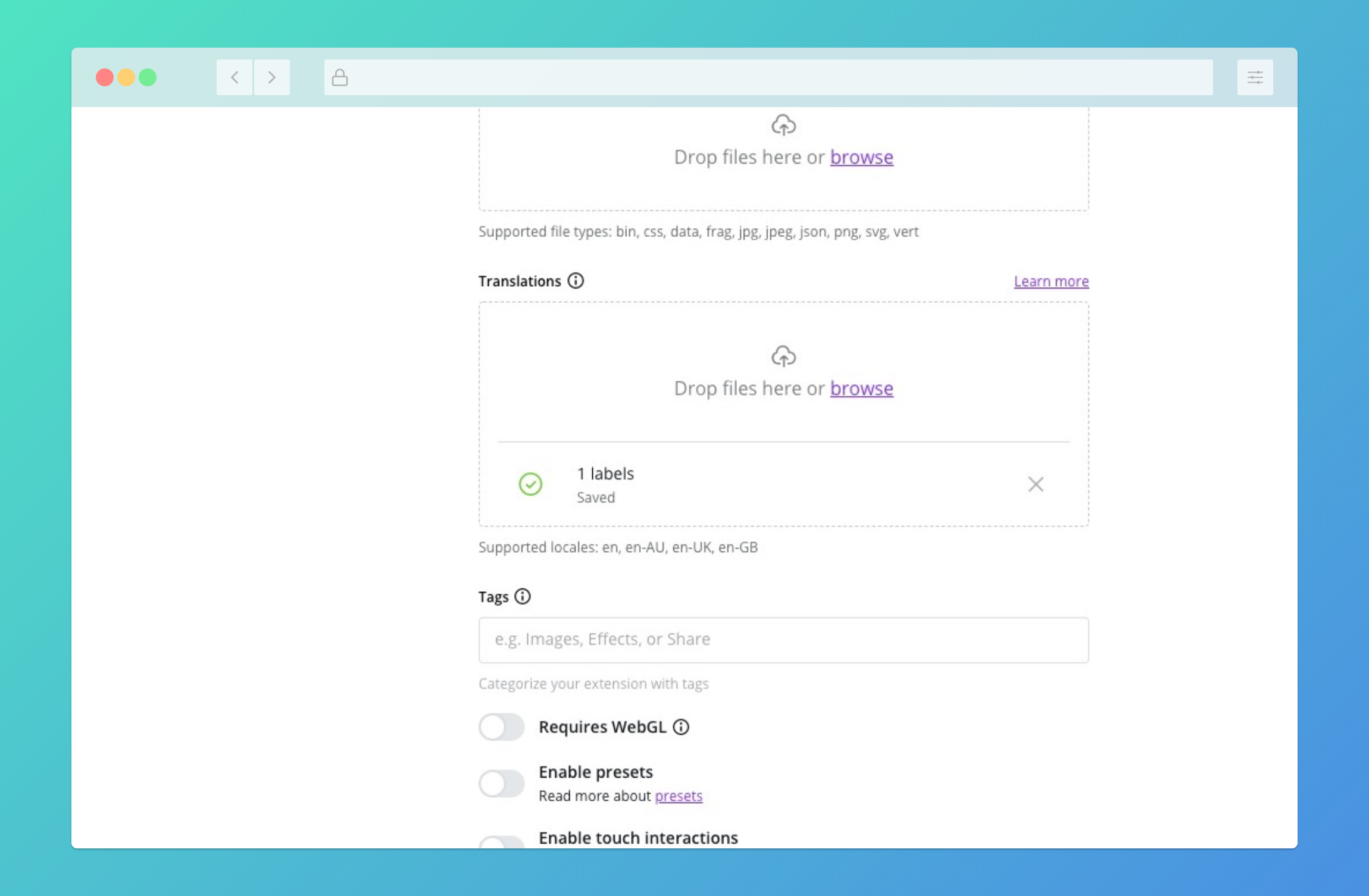

To add localized labels to an editing extension:

  1. Navigate to an app via the Developer Portal.

  2. From the Extensions page, expand the Editing panel.

  3. Upload the JSON file to the Translations field.

The labels will be passed into the app via the onReady callback:

const canva = window.canva.init();
canva.onReady(async (opts) => {
console.log(opts.localizedLabels);
// {
// greeting: "I hope you're having a lovely day."
// }
});

You can then access individual strings by referring to their key properties:

canva.onReady(async (opts) => {
console.log(opts.localizedLabels.greeting);
// I hope you're having a lovely day.
});

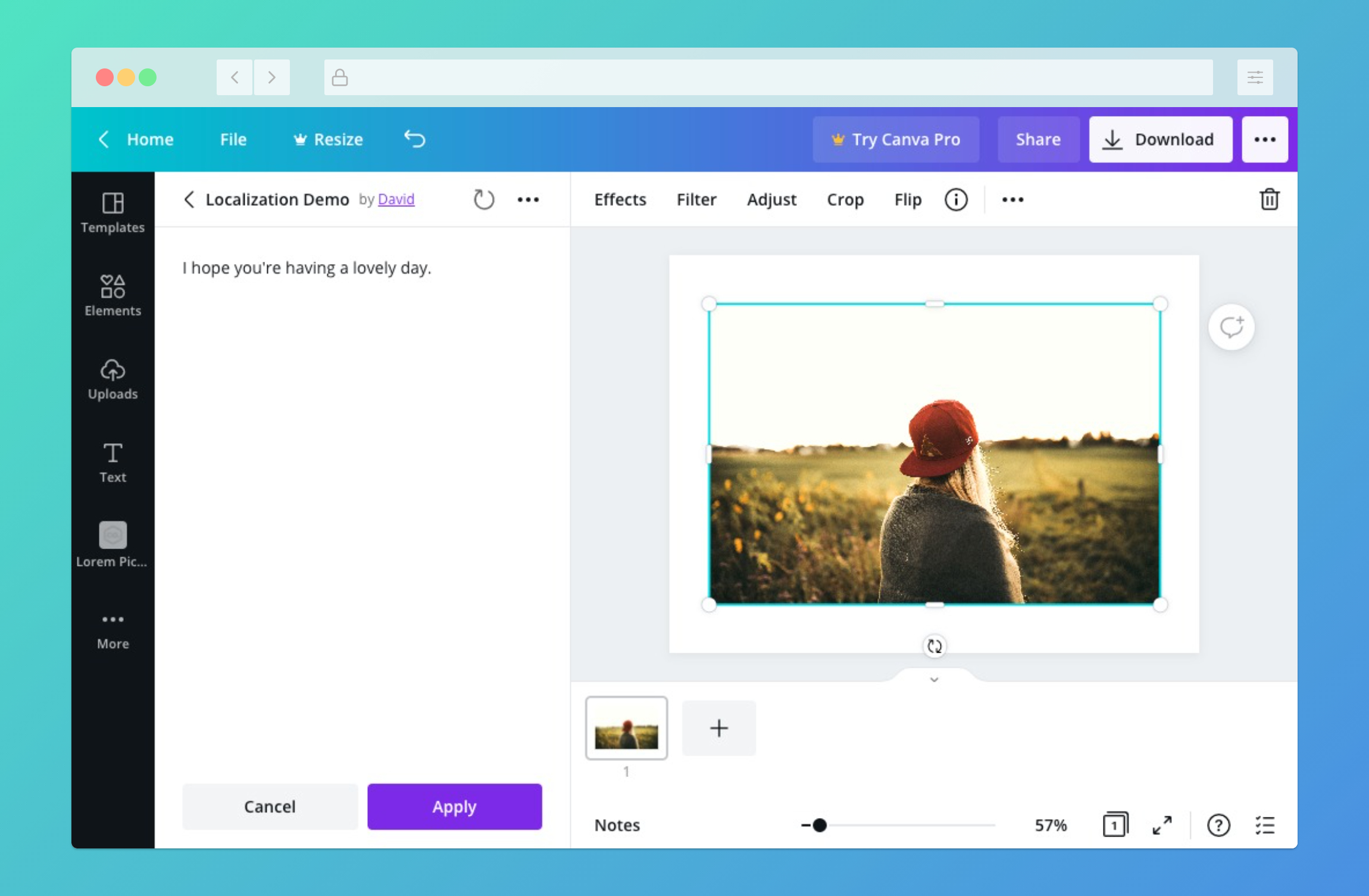

This is an example of an extension that renders a Paragraph control with a localizable string:

const { imageHelpers } = window.canva;
const canva = window.canva.init();
canva.onReady(async (opts) => {
const img = await imageHelpers.toImageElement(opts.image);
img.width = opts.previewSize.width;
img.height = opts.previewSize.height;
img.style.width = '100%';
img.style.height = '100%';
document.body.appendChild(img);
const controls = [
canva.create('paragraph', {
id: 'myExampleParagraph',
text: opts.localizedLabels.greeting,
}),
];
canva.updateControlPanel(controls);
});

JSON Schema

Your JSON file will be validated when you upload it to the Developer Portal. If you'd like to validate the file before uploading it, you can use this JSON Schema:

{
"properties": {
"en": {
"type": "array",
"items": {
"properties": {
"key": {
"type": "string",
"description": "A unique ID for the string."
},
"value": {
"type": "string",
"description": "The content of the string."
},
"translatorNote": {
"type": "string",
"description": "A note that provides context to assist with translating the string."
}
},
"required": ["key", "value", "translatorNote"],
"additionalProperties": false
}
}
},
"additionalProperties": false
}
